BRASS PRESS PEX FITTINGS
BRASS PRESS PEX FITTINGS
Aluminum plastic composite /
PEX / PE-RT / PB/ Steel plastic composite
Manufactured as standard for use with
Aluminum plastic composite pipe
Max Operating Pressure: 10 bar
Max Operating Temperature: 95°C
Max Peak Temperature (at 1 hour): 110°C
U or TH profile; U & TH profile
Brass Press Fittings for Multilayer pipe are well-designed and ideal for use in hot and cold water distribution systems (sanitary and heating systems).

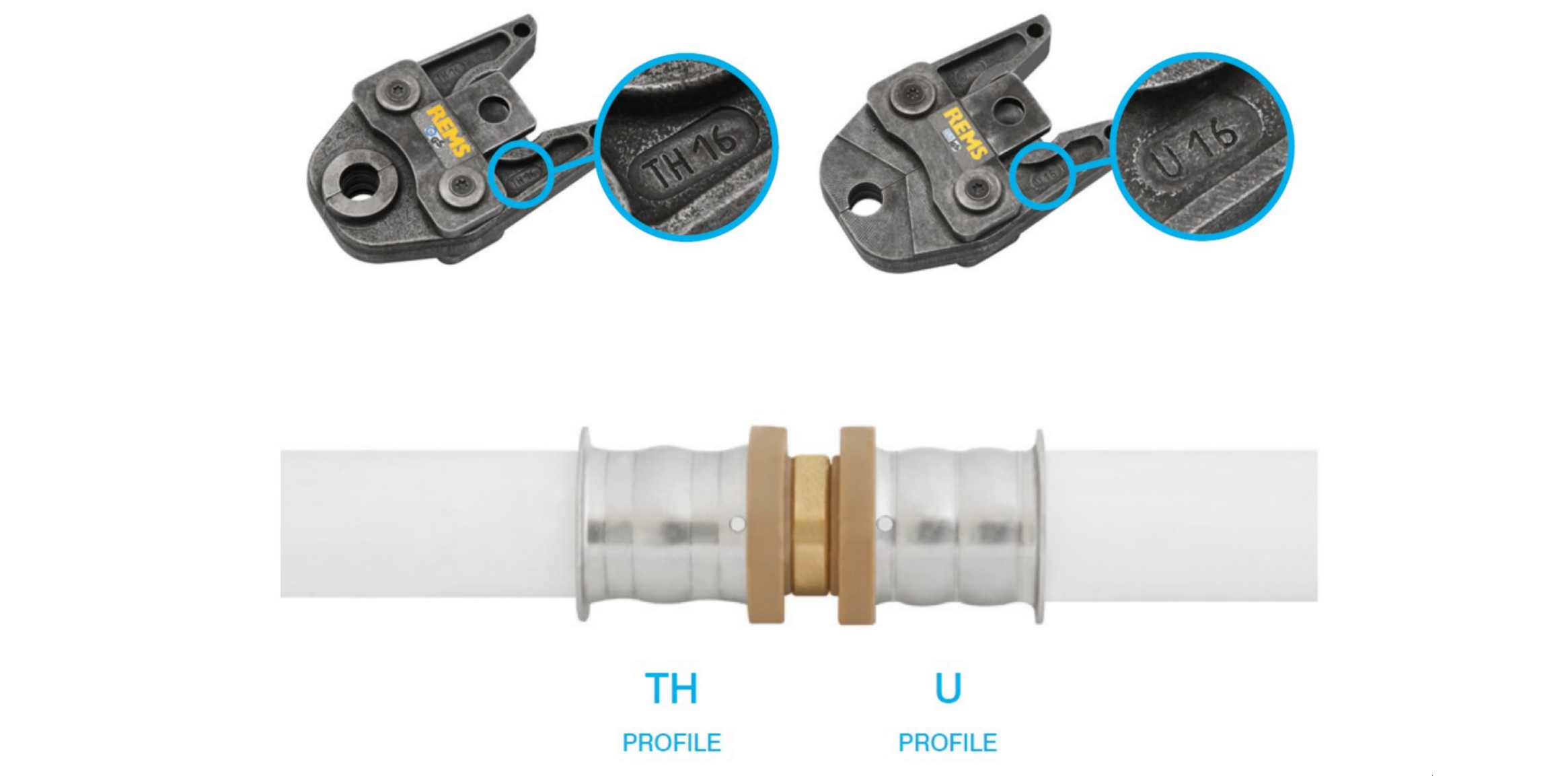

Depending on the different types of tongs used in the installation, there are different options for this series fitting.
| Category | Tongs profile |
| U-type | U profile |
| TH-type | TH profile |
| Universal type | compatible various profile (H, U,TH) |
The press fitting has the special characteristic of being immovable. This fitting, when compressed correctly, undergoes a permanent deformation that guarantees long- term sealing. For this reason, the press fittings are the only type of coupling that can be used and guaranteed in embedded systems.
The safe and stable connecting lies on the permanent compression plastic deformation of the stainless steel sleeve. The lock ring insulates the aluminium pipe from the brass pipe, thus avoiding corrosion effects.
The universal type fitting is LBP (Leak before press) featured. Which is designed in such a way that water flows out even the pressure is very low during the pressure- testing if the fitting has not been pressed or been pressed inadequately.
The fittings are available in sizes from Ø16 to Ø 32. Easily installed and disassembled.

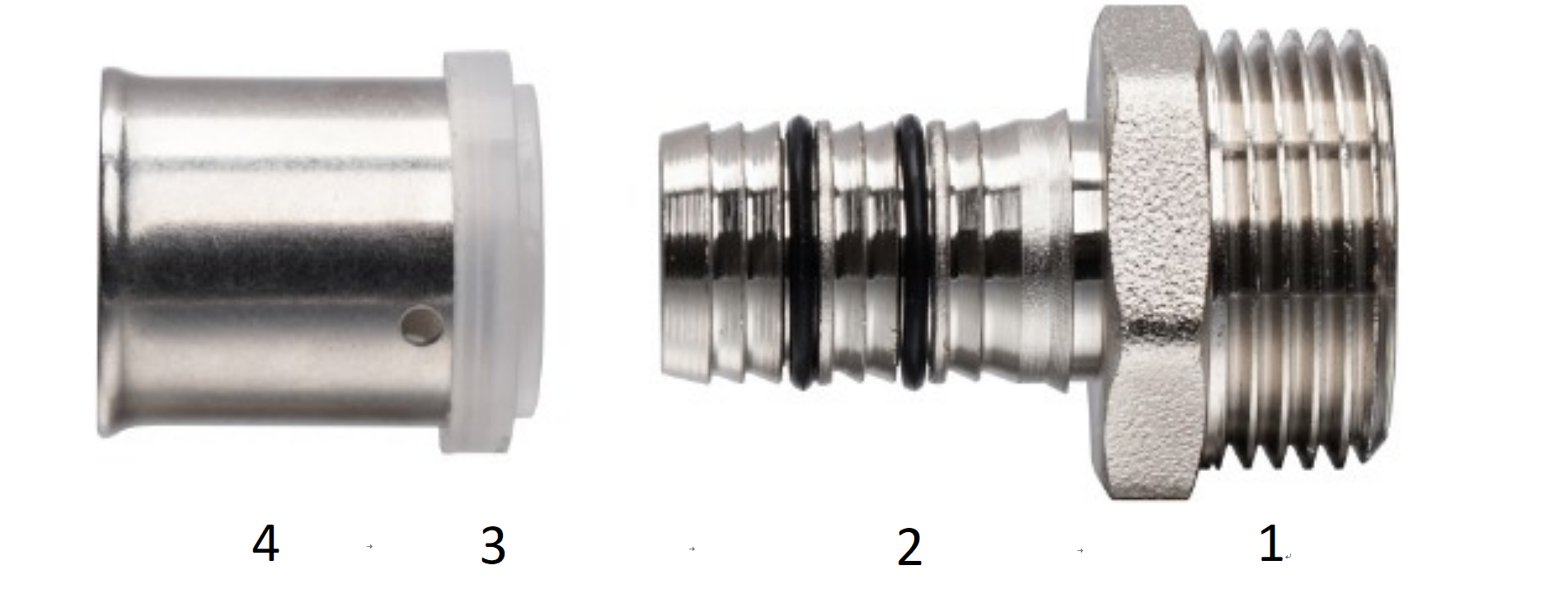

Structure
| Item | Description | Materials |
| 1 | Body | MS58 / CW617N-DW |
| 2 | O-ring | EPDM |
| 3 | Sleeve Seat | Plastic |
| 4 | Sleeve | Stainless Steel |
Features
● deal for use in plumbing system and heating system
● CE approved
● Double O-rings for additional safety
● Min and max Temp: -25°C to + 120°C
● Max Pressure PN: 16 bar (PN-16)
● Fast, time-saving and easy installation, eliminates the risk of fire
● Available sizes from Ø16 to Ø 32
● Varieties of options, U type is cost-effective, Universal type with LBP feature
● Marked for full traceability
